Safe Accurate Cutting Of Any Component With The ProCut™ UC Linear Saw

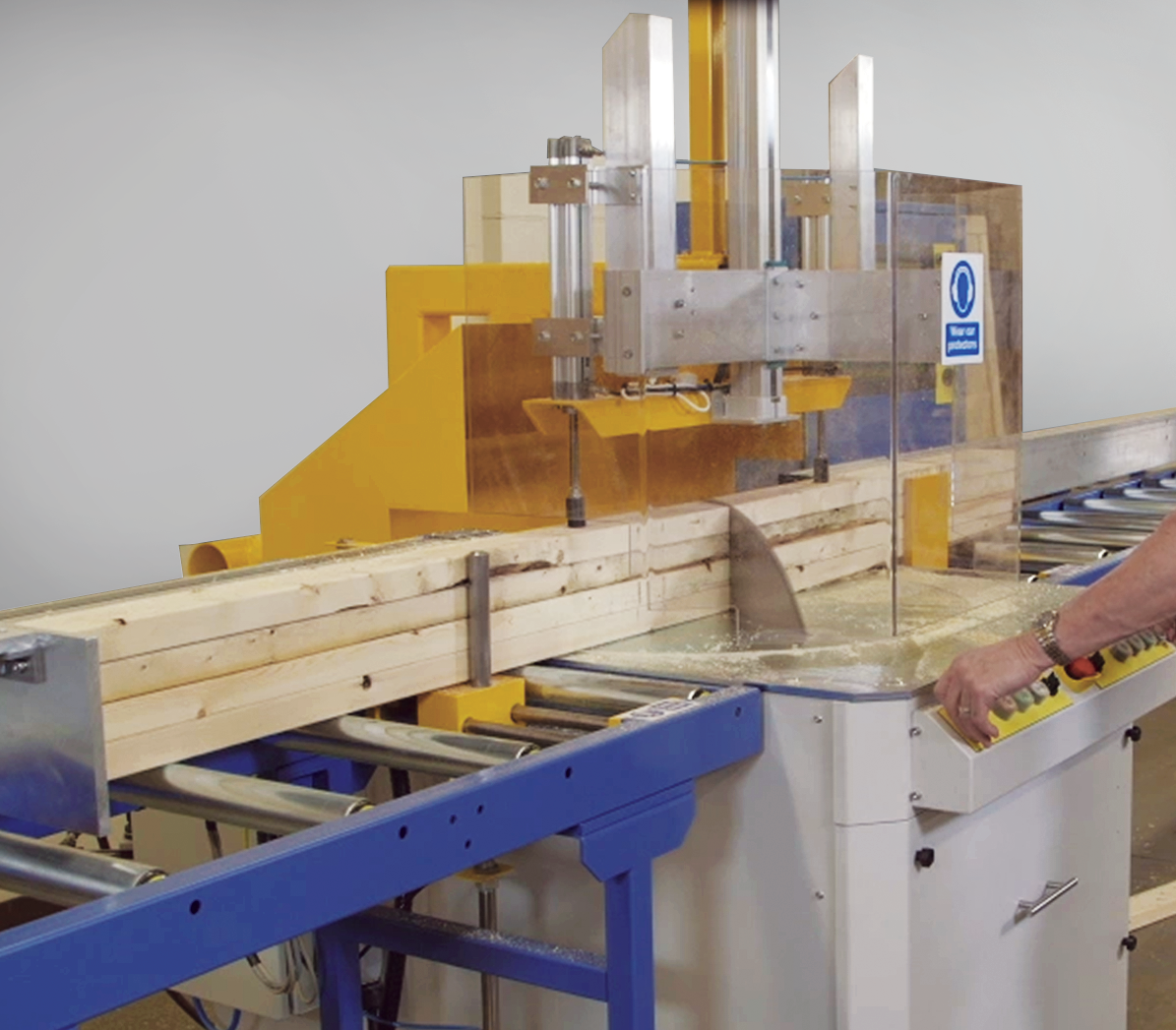

ProCut™ UC Linear Saws – for all Roof, Floor, and Wall Panel Components; webs, chords, sliders and wedges - up to 4-boards high! 6-Position clamping squares and holds lumber for spot-on accuracy.

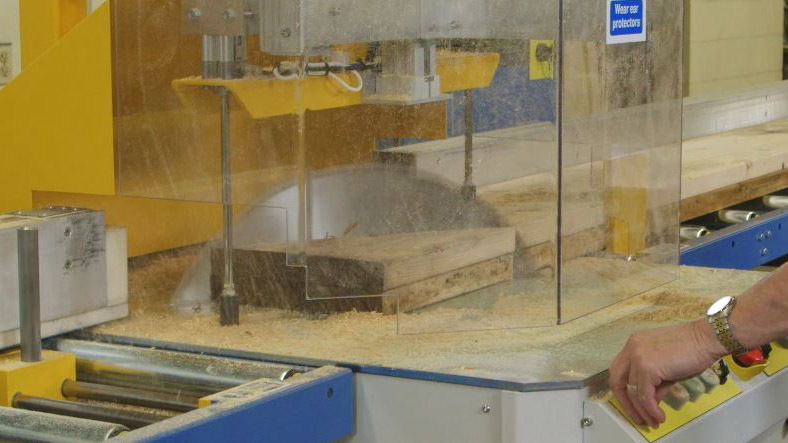

Dual push button controls and clear Makrolon® saw blade guard allows for hands-free cutting, with complete visibility during the cut cycle. The ProCut’s fully enclosed saw chamber features (4) 4” dust collection outlets ready to connect to your dust extraction system.

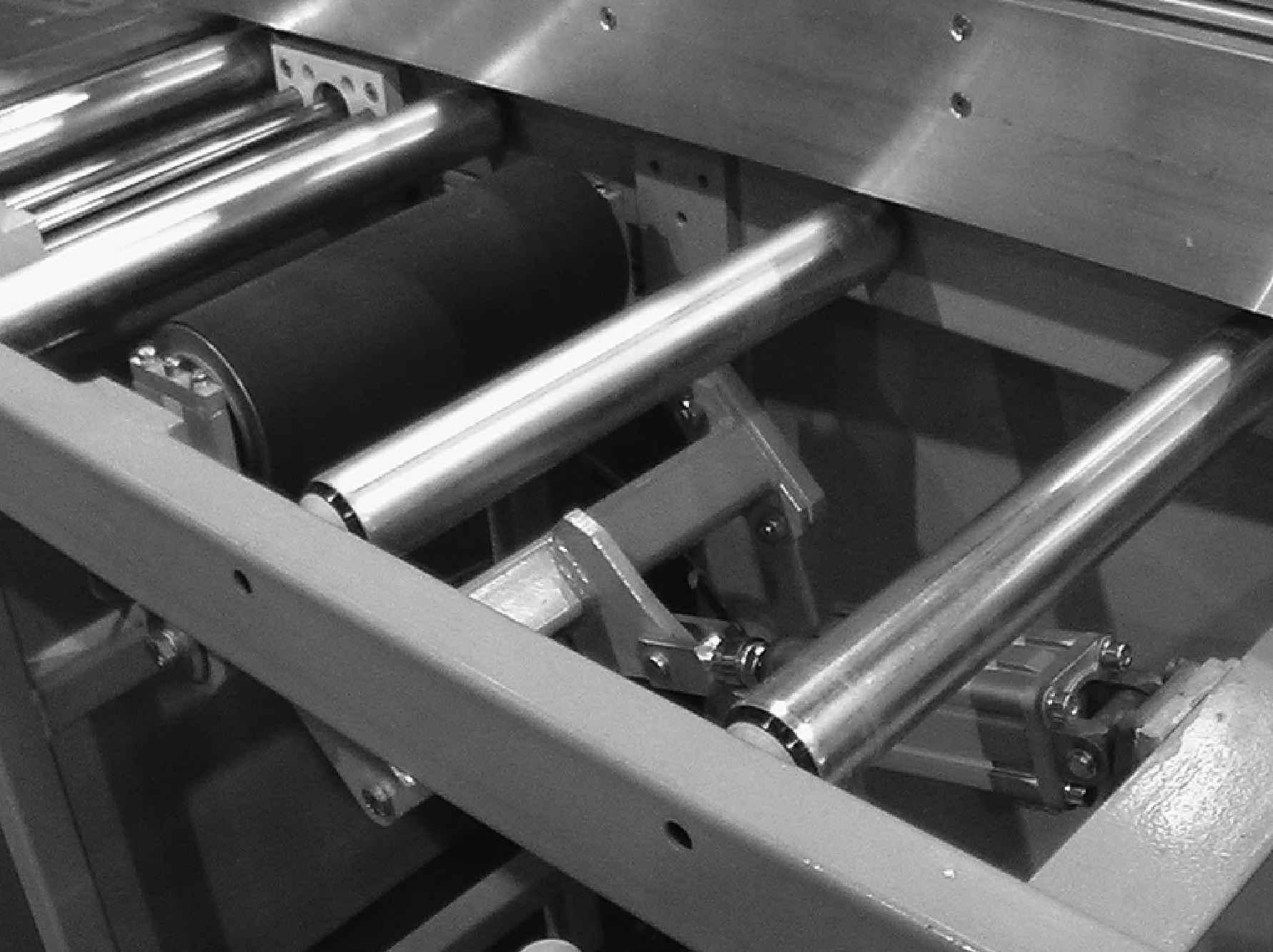

ProCut™ features a 16´ 6˝ powered Infeed conveyor, 20´ exit conveyor, and servo-controlled measuring system for accurate lengths. Multi-pass cutting is perfect for cutting longer scarf cuts with a clear poly-guard for safety. Also available with lumber infeed decks, material delivery systems and scrap removal systems.

ProCut UC Linear Saws - Technical Specifications

Technical Specifications:

  • Working Height - 39"
  • Saw Cabinet Width - 34"
  • Saw Cabinet Depth - 50"
  • Infeed Conveyor - 16' 6"
  • Outfeed Conveyor - 20'
  • Saw Motor - 6.2 HP X 220 Volt X 3 Ph
  • Air Requirements - 10 CFM
  • TCT Blade size - 25.6
  • Service Hour Meter to - 99,999 hours
ProCut UC Linear Saws - Safety Features

Safety Features:

  • Dual Push Button Control System w/ E-Stop
  • Clear Makrilon Saw Blade Guard
  • Full Width Dust Extraction Hood with (4) - 4" Outlets
  • Lumber Clamping/ per Clamp - 120 Lbs.
  • Carries "CE" Mark/ OSHA Reviewed/ "CSA" Mark Available
  • *Dust Extraction Required - Consult ProCut, LLC*
ProCut UC Linear Saws - Operational Specifications

Operational Specifications

  • Angulation - 180 (0-90-0)
  • Angulation Tolerance - CNC +/- 0.100"
  • Maximum Lumber width - 11.8"
  • Centerline Capacity - 0" - 5.9"
  • Centerline Tolerance - CNC +/- 0.02
  • Maximum Lumber Height (3 boards high) - 5"
  • Maximum Lumber Height (operational 4 boards high) - 6.4"
  • Maximum Scarf Cut - 55"
  • Data Input - Network, USB, or Manual
  • Operating System -  Windows 11
  • Works with all leading truss design software
ProCut UC Linear Saws - Options

Options Available:

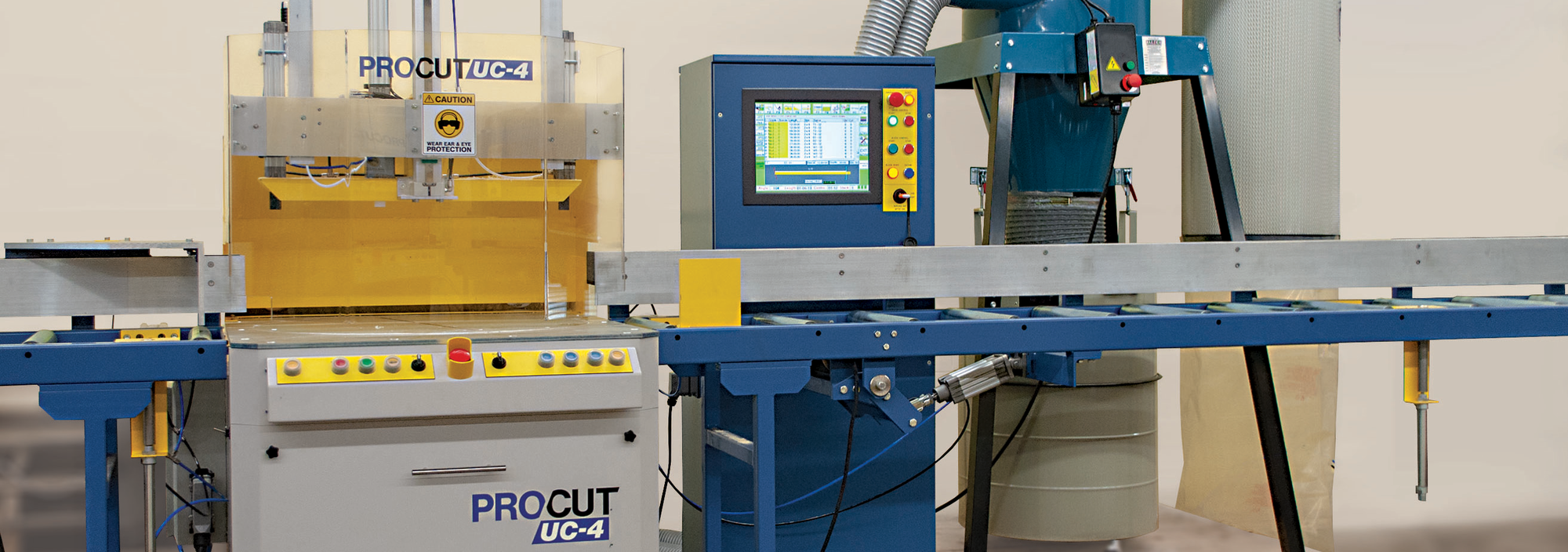

  • ProCut™ UC 4 - Up to 4 boards high!
  • Right Hand Measuring System
  • Dust Collection System

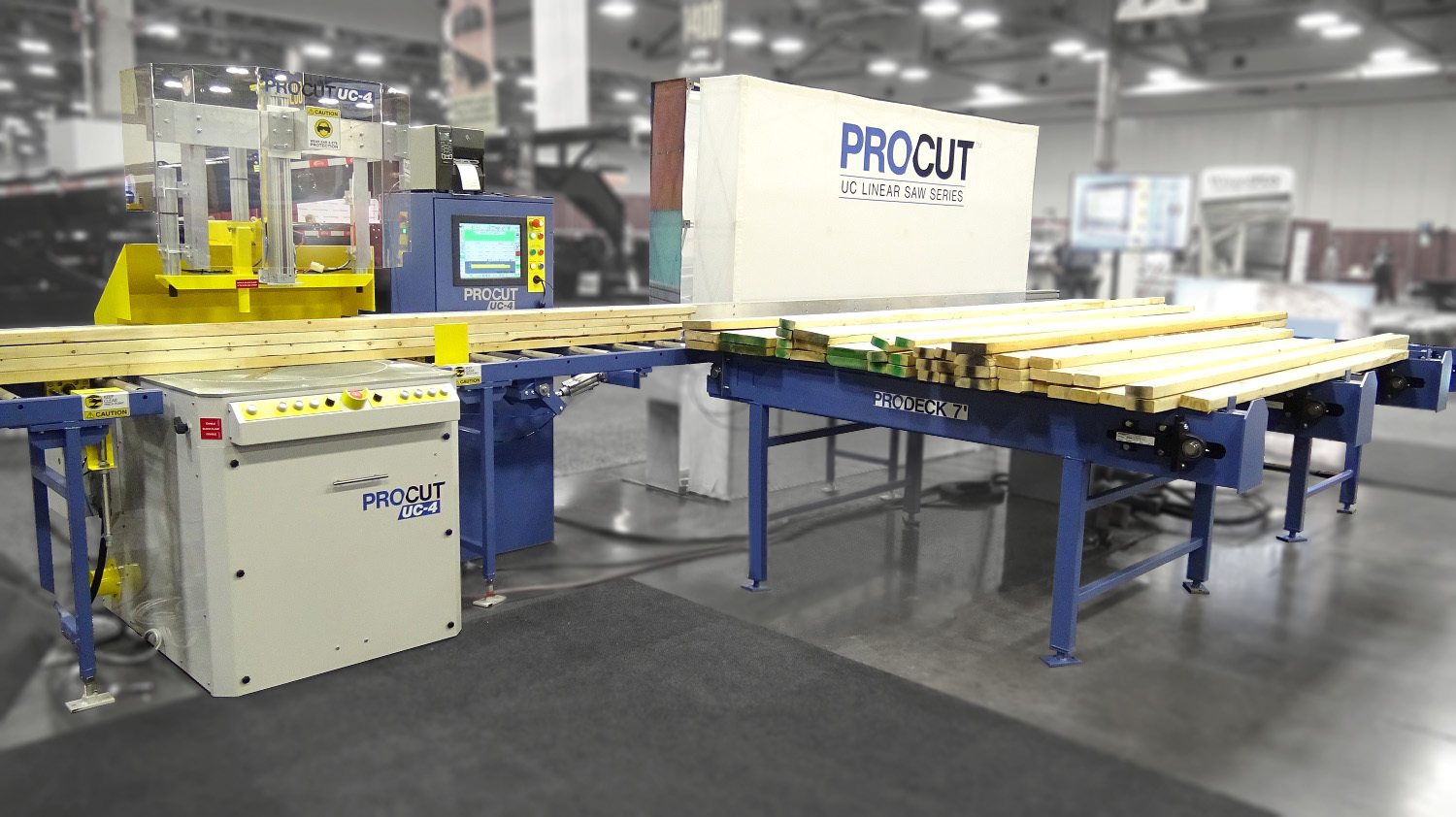

  • Lumber Infeed/ ProDeck™
  • Material Handling Delivery Systems
